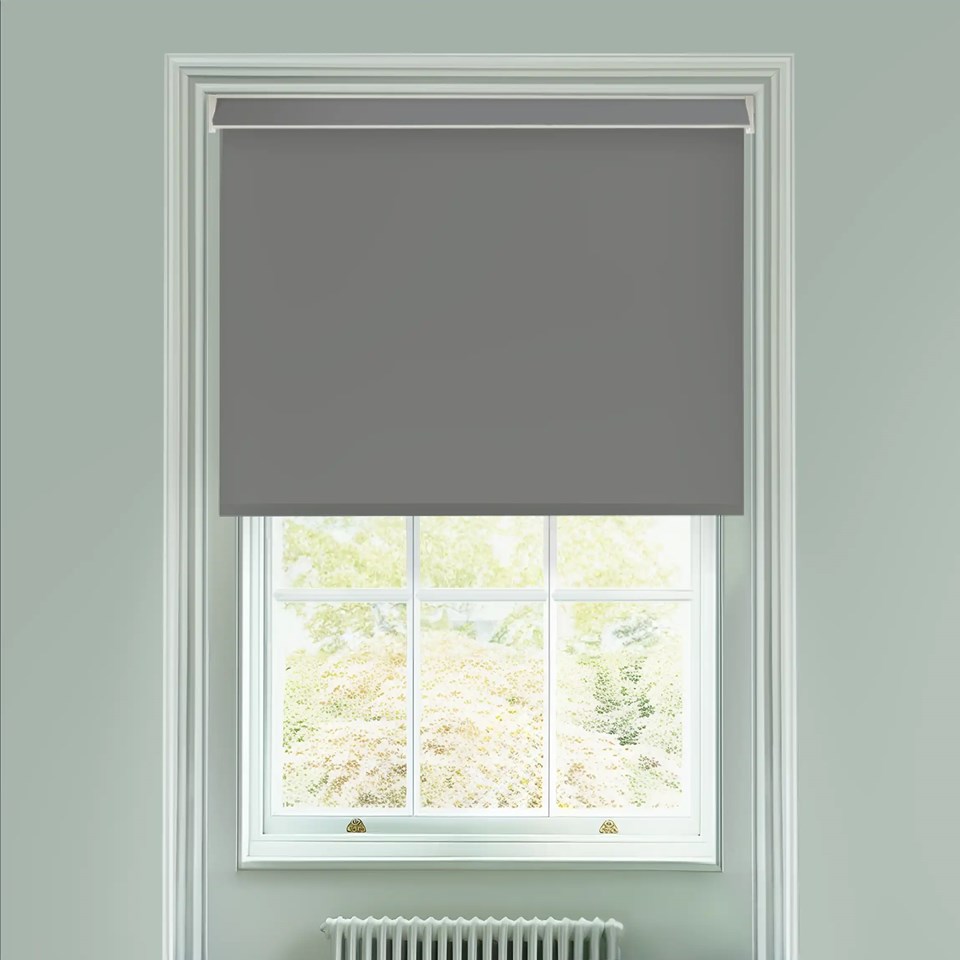

Ash Daylight Electric Roller Blind

Please read the guide below and let us know which type of measurement you are providing:

Recess Size

If you want to fit your blind within the window recess as shown above, please provide us with Recess Size measurements.

To do this you will need to measure inside the window recess from wall to wall for the width and from ceiling to window sill for the drop.

You should take the measurements three time to make sure you get the most accurate sizes - at the top, at the middle and at the bottom for the width and at the top, the middle and the right for the drop.

The three sizes to give us are the smallest of the three measurements for both the width and the drop.

Make sure you do not make any reductions from these sizes yourself. We'll make your blinds slightly smaller on the width than the sizes you give us to make sure that it fits into the space with enough room for it to be installed easily and so the brackets don't scrape the walls, while still covering as much of the window as possible. The adjustment size will differ depending on the type of blind you choose and whether you are adding a cassette to cover the roll - our team will be happy to confirm the reduction amount for you if you advise which blind you are ordering.

Remember that the width of the fabric will always be slightly less than the total width of the blind to allow for the size of the mechanism and brackets - the difference is usually approximately 3.5cm.

Fabric Size or Blind Size

If you want to fit your blind outsdie of the window recess we recommend overlapping the window by at least 10cm on the width and 10cm on the drop.

You can then specify whether you want us to use these measurements as the Fabric Size or the Blind Size.

Fabric Size

If you choose Fabric Size we will use your measurements as the size of the fabric part of the blind only. This means that the size of the brackets/mechanism/cassette will be in addition to the sizes you provide us - this is usually 3.5cm but our team will be happy to confirm the amount for you before ordering.

Blind Size

If you choose Blind Size we will use your measurements as the size of the total blind including the brackets and mechanism (and cassette if ordered). This means that the fabric part of the blind will be slightly smaller than the sizes you provide. The amount of difference varies depending on the type of blind ordered - it is usually 3.5cm but our team will be happy to confirm the amount for you before ordering.

Standard Roller System



Our standard roller system allows the fabric roll, brackets and blind mechanism to be seen. They can be either top fixed or face fixed, but not side fixed. This is the most common system used and is the one you've probably seen around the most.



To give our system a premium finish we supply matching white plastic bracket covers with our standard roller system at no additional cost. Just slip them over the metal bracket once its screwed into place for a neat, attractive finish.



Luxury Roller System



If you choose our luxury roller system we will supply you with a smart 7cm tall aluminium cassette that hides the roll of fabric, the brackets and the blind mechanism. It also removes the gap you would usually see between the ceiling and the fabric roll giving a neater and more high end, contemporary finish.



The cassette can be either top fixed or face fixed dependning where you are fitting your blind. Top fix is used when fitting your brackets at the top to the 'ceiling' area inside a recess; while face fixed is used when brackets are attached vertically on the wall for the cassette to clip into such as when you are fitting above a window outside of the recess.



For most fabrics the cassette will have a piece of the same fabric as the blind itself fitted into the cassette as seen in the image above, however, if you are purchasing a sunscreen or sheer blind this fabric cannot be used as an insert and so the cassette will be supplied plain as shown below:



Please read the guide below and select which bottom finish option you would like from the drop down menu:

Plain Bottom Finish

Our plain bottom finish features a sturdy folded and sewn bottom pocket with a weighted insert to ensure the blind hangs nicely.

Aluminium Bottom Bars

Alternatively you can choose to have the bottom of your blind finished with an aluminium bottom bar in a range of finishes.

White Curved Bottom Bar

Black Curved Bottom Bar

Anthracite Grey Curved Bottom Bar

Silver Curved Bottom Bar

_{Please Note - In July 2023 our bottom bar options changed from a round aluminium bar to the rectangular Gemini bottom bar with a sleek curved front and stylish angled end caps.
If you ordered previously and want to check if your new product's bottom bars will match those on your previous order, please contact our team who will be able to confirm.}
